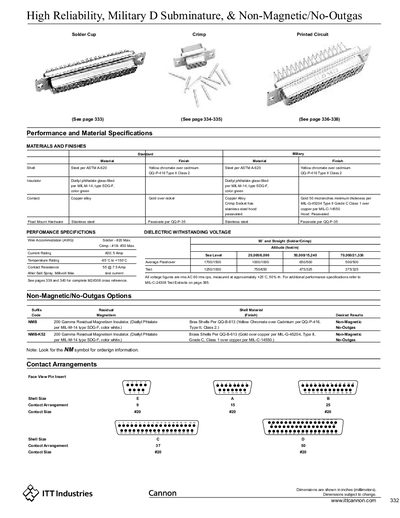

This is a document about ittcannon 332. It mainly introduces the performance and material specifications of the product.
The document describes high‑reliability, military‑grade D‑subminiature connectors, including standard and non‑magnetic/no‑outgas versions. It lists material and finish specifications such as yellow chromate over cadmium and details performance data like current and temperature ratings.
Ordering information, part‑number cross‑references, dimensional drawings, and tooling recommendations are provided for solder‑cup, crimp, and right‑angle connector styles. The guide also covers mounting options, non‑magnetic suffix codes, and recommended assembly procedures.
| Current Rating | 5 Amp |
|---|---|
| Temperature Rating | 65 °C to +150 °C |
| Contact Resistance | 88 mΩ @ 7.5 A |
| Wire Accommodation (Solder) | #20 AWG max |
| Wire Accommodation (Crimp) | #18‑#30 AWG max |
| Shell Finish (Standard) | Yellow chromate over cadmium |
The current rating for #20 contacts is 5 Amp.
The connectors are rated for temperatures from 65 °C up to +150 °C.
Add the suffix code (e.g., NMB or NM‑K52) to the part number to specify a non‑magnetic, no‑outgas option.
Crimp contacts accept wire sizes from #18 to #30 AWG.
