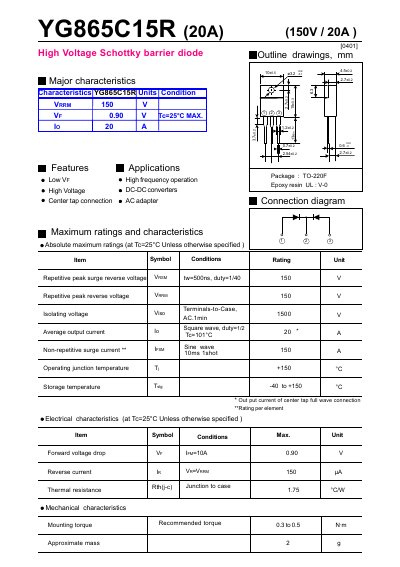

YG865C15R (20A) is a high voltage Schottky barrier diode from Infineon. This diode features low VF, high voltage, center tap connection, and is suitable for high frequency operation, DC-DC converters, AC adapter, etc.
The YG865C15R is a high‑voltage Schottky barrier diode designed for high‑frequency operation, DC‑DC converters, and AC adapters. It features a low forward voltage drop and a center‑tap connection for full‑wave rectification.
Key specifications include a typical forward voltage of 0.90 V at 10 A, a reverse voltage rating of 150 V, a maximum forward current of 20 A, and a thermal resistance of 1.75 °C/W. The device is supplied in a TO‑220F epoxy‑resin package with recommended mounting torque of 0.3‑0.5 N·m.
| Maximum reverse voltage | 150 V |
|---|---|
| Maximum forward current | 20 A |
| Thermal resistance (junction‑to‑case) | 1.75 °C/W |
| Package type | TO-220F |
The diode is rated for a maximum reverse voltage of 150 V.
The device can handle a maximum forward current of 20 A.
It is supplied in a TO‑220F epoxy‑resin package.
