The AT24HC02B is a serial electrically erasable and programmable read-only memory (EEPROM) with hardware data protection, organized as 256 words of 8 bits each. This product is optimized for low-power and low-voltage operation, suitable for industrial and commercial applications. It supports voltage range from 1.8V to 5.5V, and accessed via a two-wire serial interface.

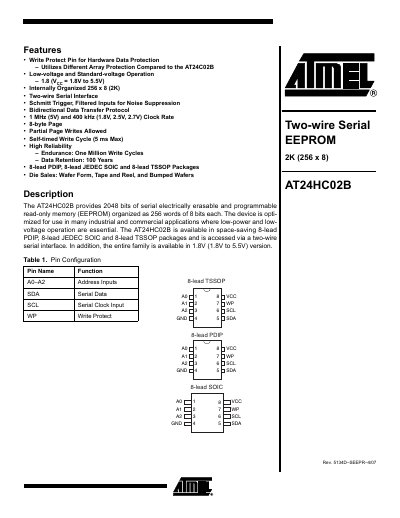

The Atmel AT24HC02B is a 2048-bit (256 x 8) serial electrically erasable programmable read-only memory (EEPROM). It is optimized for industrial and commercial applications requiring low-power and low-voltage operation, supporting voltages from 1.8V to 5.5V.
| Supply Voltage | 1.8V to 5.5V |
|---|---|
| Clock Frequency | 400 kHz at 1.8V, 1 MHz at 5V |
| Write Cycle Time | 5 ms Max |
| Endurance | 1 Million Write Cycles |
| Data Retention | 100 Years |
The WP pin allows normal read/write operations when connected to ground, but enables write protection when connected to VCC.
As many as eight 2K devices may be addressed on a single bus system.
The maximum standby current (ISB4) at VCC = 5.0V is 18.0 µA.
