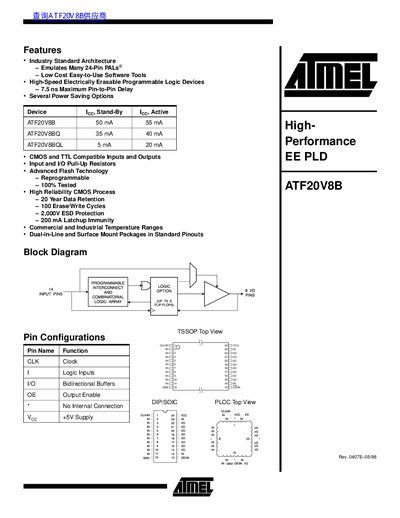

The document describes the features and characteristics of the ATF20V8B high-performance CMOS programmable logic device (PLD), including industry-standard architecture, high-speed electrically erasable programmable logic devices, several power saving options, CMOS and TTL compatible inputs and outputs, etc.
The ATF20V8B is a high-speed Electrically Erasable Programmable Logic Device (PLD) that utilizes advanced Flash memory technology. It offers speeds down to 7.5 ns and low power dissipation options, making it suitable for various industrial and commercial applications. The device emulates many 24-pin PALs and supports both registered and combinatorial logic operations.
| Maximum Pin-to-Pin Delay | 7.5 ns |
|---|---|
| Operating Temperature (Commercial) | 0°C to 70°C |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Data Retention | 20 Year |
| Erase/Write Cycles | 100 |
The maximum pin-to-pin delay is 7.5 ns.
Yes, it operates over a full range of -40°C to +85°C for industrial applications.
The device supports up to 100 erase/write cycles.
