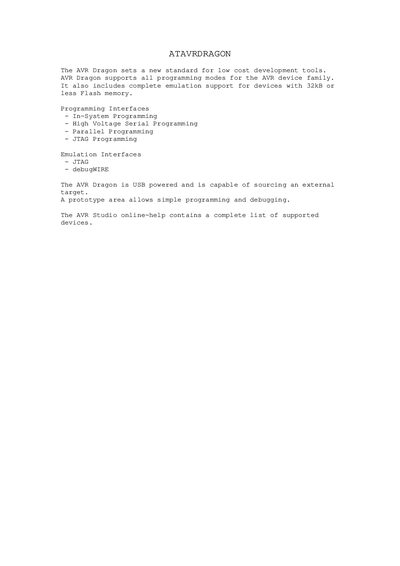

Atmel AVR Dragon Development Tool Product Leaflet

About this manual

The AVR Dragon is a development tool designed to set a new standard for low cost options. It supports all programming modes for the AVR device family, including In-System Programming, High Voltage Serial Programming, Parallel Programming, and JTAG Programming.

For debugging purposes, it offers complete emulation support for devices with 32kB or less Flash memory using JTAG and debugWIRE interfaces. The tool is USB powered and capable of sourcing an external target, featuring a prototype area for simple programming and debugging.

What's inside

• Programming Interfaces
• Emulation Interfaces
• Power Supply

Frequently asked questions

What is the maximum Flash memory size for devices supported by emulation?

Emulation support includes devices with 32kB or less Flash memory.

How does the AVR Dragon receive power?

The device is USB powered and can source an external target.
