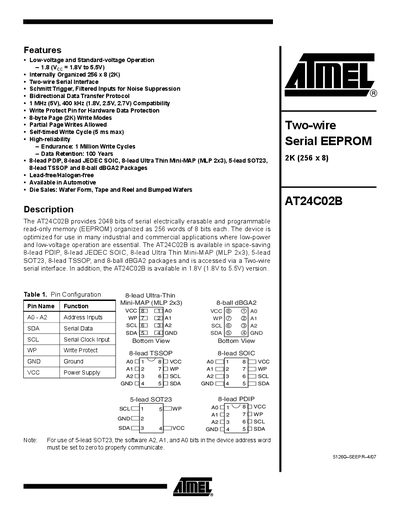

The document describes the features and characteristics of the AT24C02B product. The product is a serial electrically erasable and programmable read-only memory (EEPROM) with low power and low voltage operation. It is organized as 2048 bits of 256 words of 8 bits each. It features a two-wire serial interface, Schmitt trigger, filtered inputs for noise suppression, bidirectional data transfer protocol, and compatibility with different voltage levels. The product supports hardware data protection with a write protect pin, 8-byte (2K) and partial page write modes, and has a high reliability with 1 million write cycles and 100 years of data retention. It is available in various package types including 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2x3), 5-lead SOT23, 8-lead TSSOP, and 8-ball dBGA2. Suitable for many industrial and commercial applications.
The document provides a comprehensive technical overview of the Atmel AT24C02B, a 2048-bit (256 x 8) serial electrically erasable programmable read-only memory device. It is optimized for industrial and commercial applications requiring low-power and low-voltage operation, supporting voltages from 1.8V to 5.5V.
| Capacity | 2048 bits (256 x 8) |
|---|---|
| Operating Voltage Range | 1.8V to 5.5V |
| Clock Frequency | Up to 1 MHz at 5V, 400 kHz at 1.8V |
| Endurance | 1 Million Write Cycles |
| Data Retention | 100 Years |
| Operating Temperature Range | -40°C to +85°C (DC), -65°C to +125°C (Absolute Max) |
| Interface | Two-wire Serial Interface |
The maximum self-timed write cycle time is 5 ms.
Yes, the device is available in Automotive versions.
It is available in 8-lead PDIP, SOIC, TSSOP, SOT23, and various other packages.
