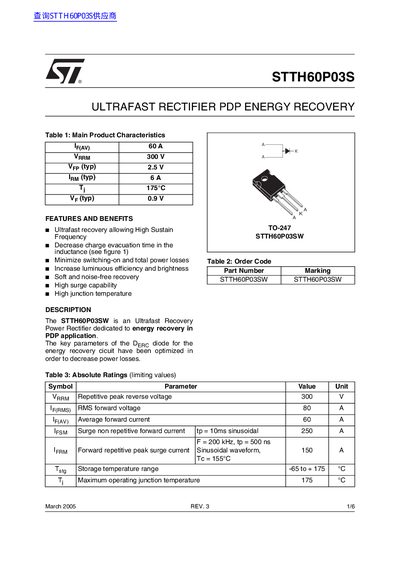

STTH60P03S is an Ultrafast Recovery Power Rectifier dedicated to energy recovery in PDP application. The key parameters of the DERC diode for the energy recovery cicuit have been optimized in order to decrease power losses. It features ultrafast recovery, decrease charge evacuation time in the inductance, minimize switching-on and total power losses, increase luminuous efficiency and brightness, soft and noise-free recovery, high surge capability, and high junction temperature.
The document describes the STTH60P03SW, an ultrafast recovery power rectifier optimized for energy recovery in Plasma Display Panel (PDP) applications. Key features include soft and noise-free recovery, high surge capability, and a maximum operating junction temperature of 175°C.
| Repetitive peak reverse voltage | 300 V |
|---|---|
| Average forward current | 60 A |
| Maximum operating junction temperature | 175 °C |
| Junction to case thermal resistance | 0.8 °C/W |
The maximum operating junction temperature is 175 °C.
The recommended torque value is 0.8 m.N.
