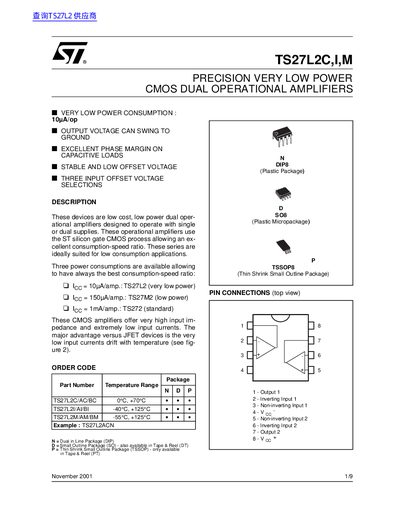

This document describes a dual operational amplifier with low power consumption, the ability to swing the output voltage to ground, excellent phase margin on capacitive loads, stable and low offset voltage. The product offers three different power consumption options for optimal consumption-speed ratio.
The document describes the TS27L2C, I, and M series as low-cost, low-power dual operational amplifiers designed to operate with single or dual supplies. Utilizing ST silicon gate CMOS technology, these devices offer an excellent consumption-speed ratio suitable for low-consumption applications.
Three power consumption levels are available: the TS27L2 (very low power at 10pA/op), TS27M2 (low power at 150pA/op), and TS272 (standard at 1mA/amp). The datasheet provides absolute maximum ratings, electrical characteristics, typical performance curves, schematic diagrams, and mechanical package data for DIP, SO, and TSSOP packages.
| Large Signal Voltage Gain | 60 to 100 V/mV |
|---|---|
| Gain Bandwidth Product | 0.8 MHz Typ. |
| Common Mode Rejection Ratio | 65 to 80 dB |
| Operating Temperature Range (TS27L2C) | 0°C to +70°C |
The series offers TS27L2 (very low power), TS27M2 (low power), and TS272 (standard).
Yes, the output voltage can swing to ground.
The absolute maximum supply voltage is 18V.
