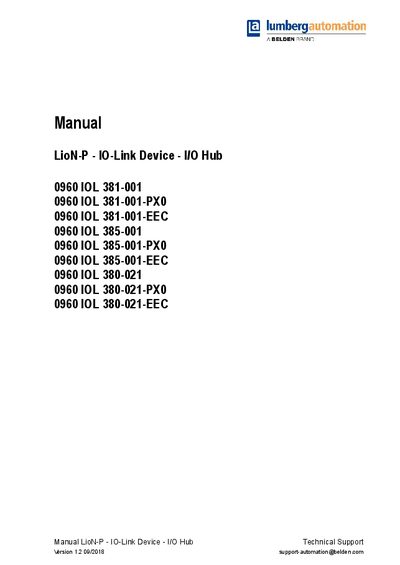

The Belden LioN-P 0960 IOL 381-001 IO-Link I/O Hub manual provides assembly, wiring, configuration, parameterization, and technical specifications.
This manual describes the LioN-P IO-Link Device – I/O Hub modules, covering safety instructions, intended use, and handling requirements for industrial environments. It includes detailed assembly and wiring guidelines, as well as configuration and startup procedures for the various module variants.
Technical data such as ambient temperature ranges, power supply requirements, digital input/output specifications, and certification approvals are provided. The document also contains information on LED indicators, diagnostic properties, firmware updates, and available accessories.
| Ambient temperature (operation) | -20 °C … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 °C … +85 °C |
| Weight | Approx. 280 g |
| Housing material | Die‑cast zinc |
| Nominal voltage (module electronics) | 24 V DC |
| Power consumption (max) | 100 mA |
| Output current per channel (16DIO) | 2 A |
| Output type | p‑switching |
| Approvals | CE, UL, IO‑Link |
The nominal voltage is 24 V DC.
The maximum output current per channel is 2 A.
The module is approved according to CE, UL, and IO‑Link standards.
The device can operate from –20 °C to +70 °C.
