This product is a 24AWG 4-core twisted pair cable, suitable for Ethernet and other scenarios.

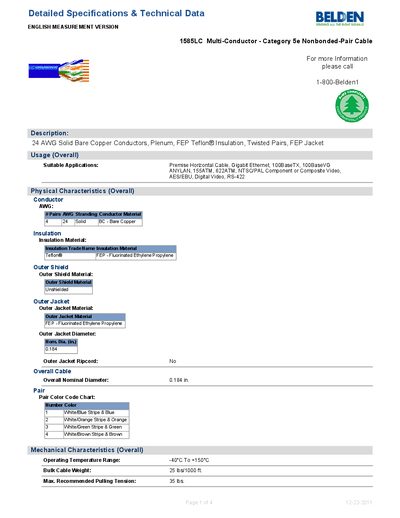

The 1585LC multi‑conductor cable features 24 AWG solid bare copper conductors, Teflon® FEP insulation and jacket, and is unshielded. It is designed for premise horizontal cabling, Gigabit Ethernet, 100BaseTX, video, AES/EBU and other high‑speed data applications. The cable is available in color‑coded twisted pairs and meets Category 5e (TIA‑568‑C.2) specifications.
The product complies with multiple standards including NEC, C‑UL, ISO/IEC 11801, EU RoHS and CE marking. It is plenum‑rated (Plenum Number 15854), operates from –40 °C to +150 °C, and supports a maximum voltage of 300 V RMS. Physical dimensions include an overall nominal diameter of 0.184 in. and a minimum bend radius of 0.500 in. The cable’s electrical performance includes a maximum delay of 510 ns at 100 MHz and a recommended pulling tension of 35 lb.
| Conductor AWG | 24 AWG |
|---|---|
| Insulation Material | Teflon® FEP (Fluorinated Ethylene Propylene) |
| Outer Shield | Unshielded |
| Outer Jacket Material | FEP (Fluorinated Ethylene Propylene) |
| Overall Nominal Diameter | 0.184 in. |
| Operating Temperature Range | -40 °C to +150 °C |
| Maximum Recommended Pulling Tension | 35 lb |
| Maximum Operating Voltage (UL) | 300 V RMS |
| Maximum Delay | 510 ns @ 100 MHz |
It operates from –40 °C to +150 °C.
The recommended pulling tension is 35 lb.
Yes, it is plenum‑rated (Plenum Number 15854).
The cable is rated for up to 300 V RMS under UL specifications.
