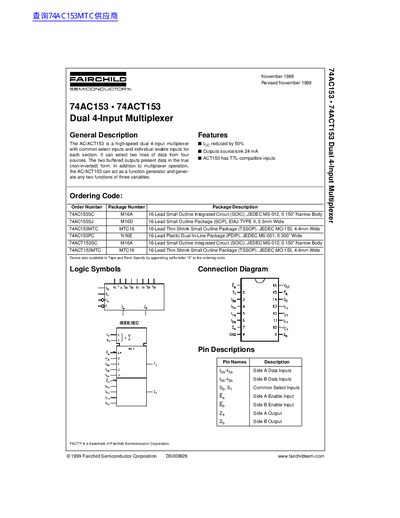

The 74AC153 • 74ACT153 is a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section. It can select two lines of data from four sources. The two buffered outputs present data in the true (non-inverted) form. In addition to multiplexer operation, the 74AC153 • 74ACT153 can act as a function generator and generate any two functions of three variables.
The document describes the AC/ACT153 as a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section. It can select two lines of data from four sources or act as a function generator to generate any two functions of three variables.
The datasheet provides comprehensive technical specifications including absolute maximum ratings, DC electrical characteristics for both AC and ACT devices, propagation delays, capacitance values, and physical dimensions for various package types such as SOIC, SOP, TSSOP, and PDIP.
| Supply Voltage (Vcc) | -0.5V to +7.0V |
|---|---|
| Outputs source/sink current | 24 mA |
Yes, in addition to multiplexer operation, the AC/ACT153 can act as a function generator and generate any two functions of three variables.
The individual enables are active-LOW.
