This product is a high-precision lithium-ion battery monitor with overvoltage protection, overcurrent/short-circuit protection, undervoltage protection, and zero-volt battery recovery charging.

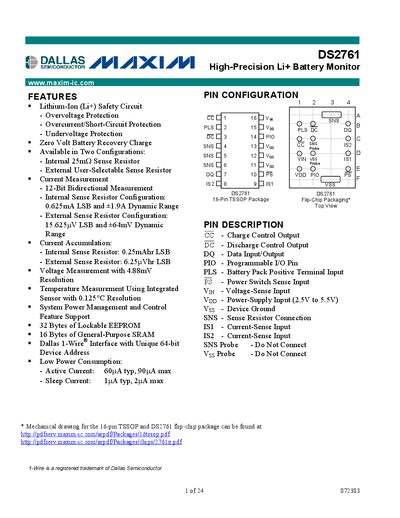

The DS2761 is a high‑precision Li+ battery monitor that integrates temperature, voltage, and current measurement with safety‑protection functions. It is designed for cost‑sensitive battery‑pack applications and communicates via a Dallas 1‑Wire interface.
Key features include internal or external sense‑resistor options, 12‑bit bidirectional current measurement, 4.88 mV voltage resolution, 0.125 °C temperature resolution, lockable EEPROM, and programmable I/O for external control.
| Active Current | 60 µA typ |
|---|---|
| Sleep Current | 1 pA typ |
| Lockable EEPROM | 32 Bytes |
| General‑Purpose SRAM | 16 Bytes |
| Interface | Dallas 1‑Wire® with 64‑bit address |
| Temperature Resolution | 0.125 °C |
| Voltage Resolution | 4.88 mV |
| Current Resolution (internal sense) | 0.625 mA |
The DS2761 has a typical sleep current of 1 pA.
It includes 32 bytes of lockable EEPROM and 16 bytes of general‑purpose SRAM.
The device uses a Dallas 1‑Wire® interface with a unique 64‑bit device address.
