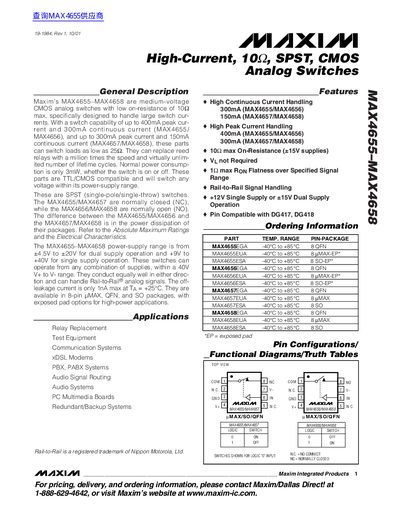

MAX4655-MAX4658 is a medium-voltage CMOS analog switch with low on-resistance of 10Ω max, specifically designed to handle large switch cur- rents.
The document describes the MAX4655-MAX4658 family of medium-voltage CMOS analog switches. These devices feature a low on-resistance of 10Ω maximum and are specifically engineered to handle large switch currents, making them suitable for replacing reed relays in applications requiring high speed and durability.
| On-Resistance (Max) | 10Ω |
|---|---|
| Peak Current Handling (MAX4655/MAX4656) | 400mA |
| Continuous Current Handling (MAX4657/MAX4658) | 150mA |
| Power-Supply Range (Dual Supply) | +4.5V to +20V |
| Off-Leakage Current (Max) | 1nA |
The difference lies in the power dissipation of their packages.
Yes, they can conduct equally well in either direction and handle Rail-to-Rail analog signals.
