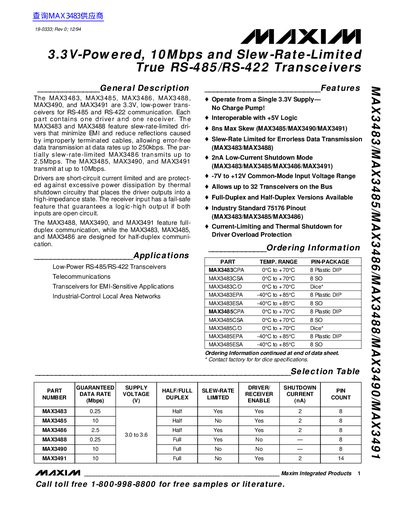

MAX3483 series are 3.3V low-power RS-485/RS-422 transceivers, which are used in telecommunications, industrial control and local area networks.
The MAX3483 through MAX3491 are 3.3V, low-power transceivers designed for RS-485 and RS-422 communication applications. Each part contains one driver and one receiver, with options available for both half-duplex and full-duplex modes depending on the specific model number.
These devices feature slew-rate limited drivers to minimize EMI and reduce reflections caused by improperly terminated cables, ensuring error-free data transmission at rates up to 250kbps or higher. They include short-circuit current limiting and thermal shutdown circuitry for driver overload protection, as well as a fail-safe receiver input that guarantees a logic-high output if both inputs are open circuit.
| Supply Voltage | 3.3V (Single Supply) |
|---|---|
| Maximum Data Rate | 10Mbps |
| Common-Mode Input Voltage Range | -7V to +12V |
| Shutdown Current | 2nA (MAX3483/MAX3485/MAX3486/MAX3491) |
The MAX3485 transmits at up to 10Mbps.
Yes, they are interoperable with +5V logic.
Up to 32 transceivers can be placed on the bus.
