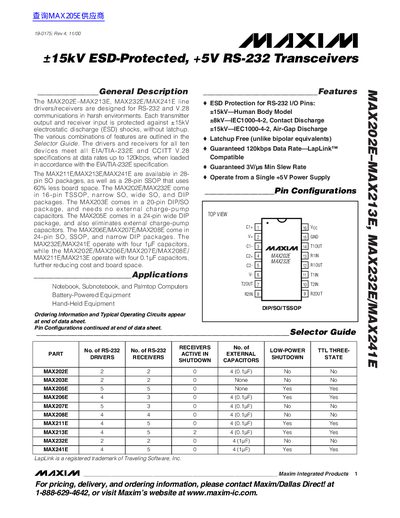

The MAX202E–MAX213E, MAX232E/MAX241E line drivers/receivers are designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification. The MAX211E/MAX213E/MAX241E are available in 28- pin SO packages, as well as a 28-pin SSOP that uses 60% less board space. The MAX202E/MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. The MAX203E comes in a 20-pin DIP/SO package, and needs no external charge-pump capacitors. The MAX205E comes in a 24-pin wide DIP package, and also eliminates external charge-pump capacitors. The MAX206E/MAX207E/MAX208E come in 24-pin SO, SSOP, and narrow DIP packages. The MAX232E/MAX241E operate with four 1µF capacitors, while the MAX202E/MAX206E/MAX207E/MAX208E/ MAX211E/MAX213E operate with four 0.1µF capacitors, further reducing cost and board space.
The document describes the MAX202E through MAX213E and MAX232E/MAX241E line drivers/receivers designed for RS-232 and V.28 communications in harsh environments. These devices feature +15kV electrostatic discharge (ESD) protection without latchup and meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps.
| ESD Protection (Human Body Model) | +15kV |
|---|---|
| Maximum Data Rate | 120kbps |
| Supply Voltage | +5V |
| Operating Temperature Range (Standard) | -40°C to +85°C |
| Output Voltage Swing | +5V to +9V |
The devices meet specifications at data rates up to 120kbps.
The drivers and receivers meet specifications at data rates up to 120kbps when loaded in accordance with the EIA/TIA-232E specification.
