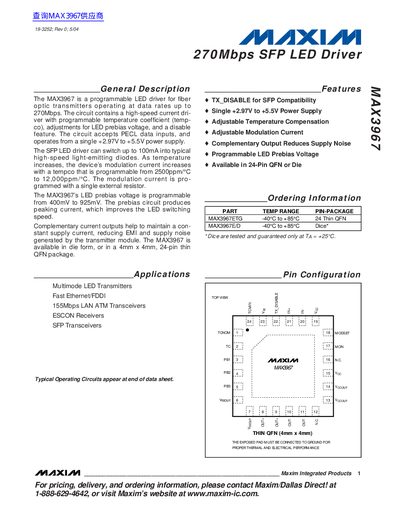

The MAX3967 is a 270Mbps SFP LED driver that contains a high-performance current driver, programmable temperature coefficient, LED prebias voltage adjustment, and a disable function.
The MAX3967 is a high-speed current driver designed for fiber optic transmitters operating at data rates up to 270Mbps. It features a programmable temperature coefficient (tempco) ranging from 2500ppm/°C to 12,000ppm/°C and allows adjustment of the LED prebias voltage between 400mV and 925mV via external resistors.
The device accepts PECL data inputs and operates from a single +2.97V to +5.5V power supply, capable of switching up to 100mA into typical high-speed LEDs. Complementary current outputs help maintain constant supply current to reduce EMI and noise. It is available in die form or a 4mm x 4mm, 24-pin thin QFN package.
| Data Rate | up to 270Mbps |
|---|---|
| Supply Voltage Range | +2.97V to +5.5V |
| Modulation Current Switching | up to 100mA |
| Temperature Coefficient Range | 2500ppm/°C to 12,000ppm/°C |
| LED Prebias Voltage Range | 400mV to 925mV |
| Package Type | 24-Pin QFN or Die |
The circuit operates at data rates up to 270Mbps.
It is programmed with a single external resistor connected between the TCMIN and TC pins.
Applications include Multimode LED Transmitters, Fast Ethernet/FDDI, 155Mbps LAN ATM Transceivers, ESCON Receivers, and SFP Transceivers.
