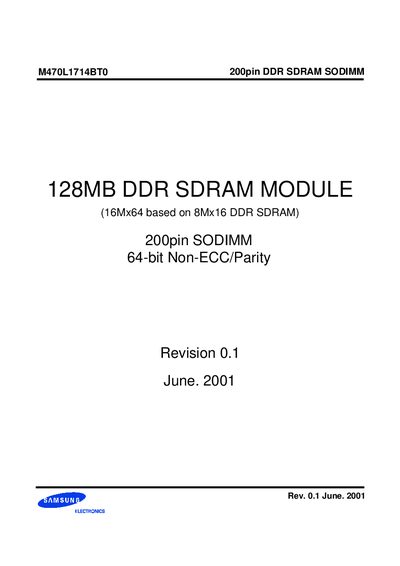

200pin DDR SDRAM SODIMM M470L1714BT0 is a high density memory module based on 128Mb DDR SDRAM first gen.
The Samsung M470L1714BT0 is a 128 MB, 200‑pin DDR SDRAM SODIMM module with a 64‑bit non‑ECC interface. It is built from eight 8M × 16 bit DDR SDRAM chips mounted on a glass‑epoxy substrate and includes on‑board decoupling capacitors.
The datasheet provides detailed electrical characteristics, absolute maximum ratings, power consumption tables, pin configurations, functional block diagrams, command timing, and mechanical dimensions for designers and system integrators.
| Memory capacity | 128 MB |
|---|---|
| Pin count | 200 pins |
| Interface width | 64‑bit |
| Maximum operating frequency | 133 MHz (7.5 ns) for CL=2/2.5, 100 MHz (10 ns) for CL=2 |
| Power dissipation | 8 W |
| Storage temperature range | -55 °C – +150 °C |
| Typical operating current (IDDO) | 620 mA |
| Package height | 2.70 in (≈68 mm) |
The module supports up to 133 MHz (7.5 ns) for CL = 2 or 2.5, and 100 MHz (10 ns) for CL = 2.
The storage temperature range is –55 °C to +150 °C.
It has a 200‑pin edge connector.
