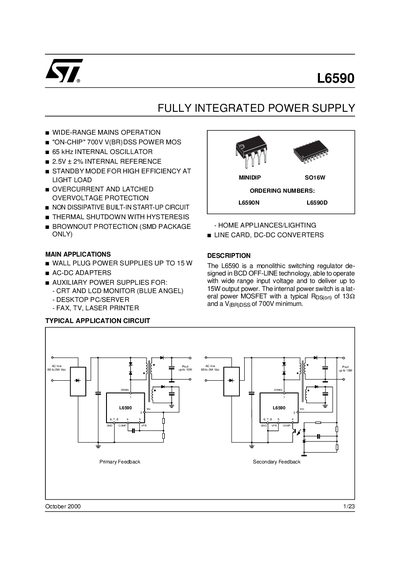

The L6590 is a monolithic switching regulator de- signed in BCD OFF-LINE technology, able to operate with wide range input voltage and to deliver up to 15W output power. The internal power switch is a lat- eral power MOSFET with a typical RDS(on) of 13Ω and a V(BR)DSS of 700V minimum.
The L6590 is a monolithic switching regulator designed in BCD OFF‑LINE technology. It operates from a wide input voltage range (8 V to 240 V AC) and delivers up to 15 W of output power for applications such as wall‑plug adapters, desktop PCs, fax, TV and laser printers.
Key features include an on‑chip 700 V MOSFET, a 65 kHz internal oscillator (22 kHz in standby), standby mode for high efficiency at light load, and multiple internal protections such as cycle‑by‑cycle current limiting, latched over‑voltage protection, brown‑out detection, UVLO and thermal shutdown.
| Maximum output power | 15 W |
|---|---|
| Thermal resistance (junction‑to‑ambient, Minidip) | 35 °C/W to 60 °C/W |
The L6590 can deliver up to 15 W of output power.
