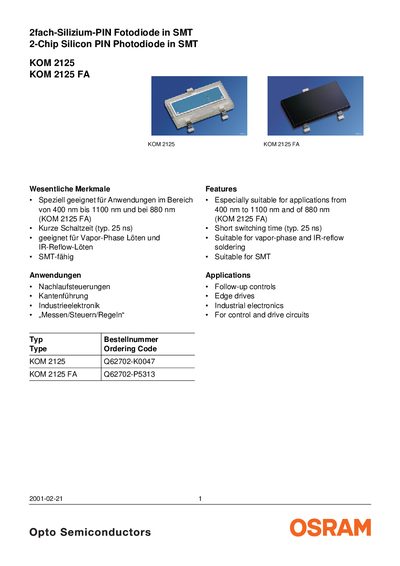

The KOM 2125 is a 2-chip silicon PIN photodiode that is especially suitable for applications from 400 nm to 1100 nm and at 880 nm. It also features a short switching time (typ. 25 ns) and is suitable for vapor-phase and IR-reflow soldering. The diode is also suitable for SMT applications and can be used in follow-up controls, edge drives and industrial electronics.
The KOM 2125 is a 2‑chip silicon PIN photodiode designed for surface‑mount technology. It is especially suitable for applications from 400 nm to 1100 nm, with a short switching time of about 25 ns, and can be used in vapor‑phase and IR‑reflow soldering processes.
The datasheet lists key electrical characteristics such as a reverse voltage of 60 V, total power dissipation of 150 mW, and an operating temperature range of –40 °C to +80 °C. Mechanical data include active area dimensions of 2 × 2 mm (Diode A) and 2 × 5 mm (Diode B), as well as package outlines and recommended handling information. This manual is written in German.
| Spectral range | 400 nm – 1100 nm |
|---|
The device is sensitive from 400 nm to 1100 nm.
The typical switching time is about 25 ns.
