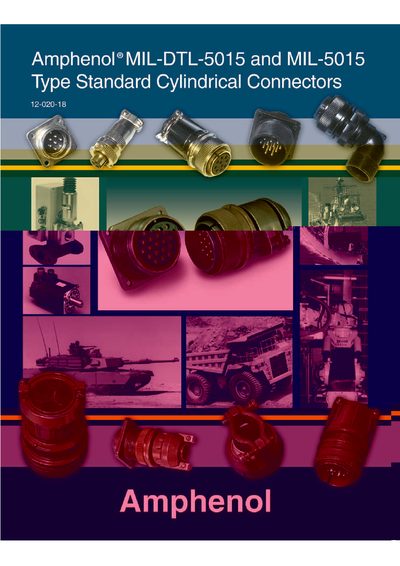

Introduction of Amphenol® MIL-DTL-5015 and MIL-5015 Type Standard Cylindrical Connectors general information, Class Designations. And detailed introduction of MS-A, MS-C, MS-E/F, MS-R series wall mounting receptacle, cable connecting plug, box mounting receptacle, straight plug and 90 degree plug.
The Amphenol catalog covers the MIL-DTL-5015 and MIL-5015 series of cylindrical connectors. It is organized into three sections: service class information, contact and insert arrangements, and accessories, each with an overview to aid selection.
Additional sections describe special connector families such as the Matrix crimp‑rear release series, Amphe‑Power high‑amperage connectors, and MIL‑5015 connectors with PCB contacts, plus ordering instructions and contact information for Amphenol Industrial Operations.
| Shell material | high grade aluminum alloy |
|---|---|
| Contact types | solder and crimp versions |
| Maximum current for size 0 AWG | 250 A |
| RADSOK contact capability | handles up to 150% higher amperages |
| Insert arrangement patterns | over 100 patterns, up to 85 circuits |
Amphenol offers over 100 insert arrangement patterns, accommodating from 1 up to a maximum of 85 circuits.
The RADSOK contact for size 0 AWG can handle currents up to 250 amps.
