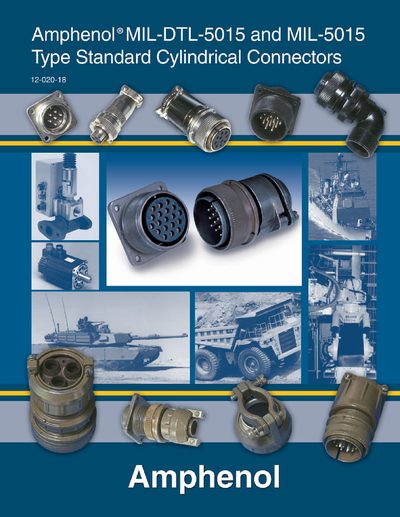

This document provides general information and class designations for Amphenol® MIL-DTL-5015 and MIL-5015 standard cylindrical connectors. The document describes different models of connectors, including wall mounting receptacles, cable connecting plugs, box mounting receptacles, straight plugs, and 90 degree plugs. The document provides detailed specifications and features of these connectors.
This catalog presents Amphenol's MIL-DTL-5015 and MIL-5015 type standard cylindrical connectors. It includes product overviews, class designations, contact and insert arrangements, accessories, and ordering instructions.
The publication is organized into three main sections: service‑class listings, contact/insert arrangement charts, and accessory options. Each section begins with an overview to help users select the appropriate connector for their application.
| Operating voltage | 3000 VAC (RMS) at sea level |
|---|---|
| Coupling type | Threaded couplings |
| Shell polarization | Single key/keyway |
| Shell styles | Five shell styles |
| Shell sizes | Nineteen shell sizes |
| Contact arrangements | 305 arrangements from 1 to 104 circuits |
| Contact types | Solder or crimp, sizes 16‑0 to 22‑0 AWG |
| Special contact options | Coaxial and thermocouple contacts |
Amphenol offers five class designations (A, C, E/F, R) for the MIL‑DTL‑5015 series.
The catalog refers to the “how to order” section on page 70 for complete order numbers.
The connectors are rated for up to 3000 VAC (RMS) at sea level.
Yes, both coaxial and thermocouple contact options are listed.
