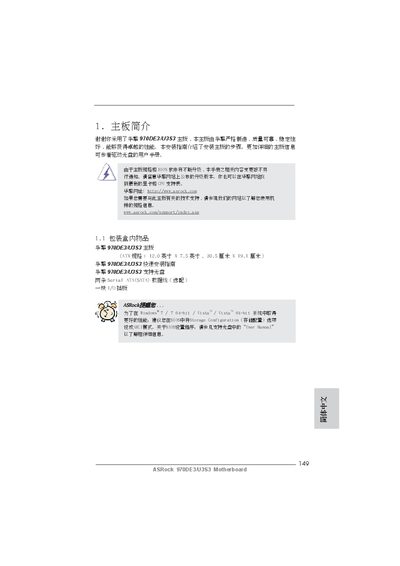

ASRock 970DE3/U3S3 Motherboard Installation Guide

ASRock 970DE3/U3S3 Motherboard is an ATX form factor motherboard supporting Socket AM3+ and Socket AM3 processors. It supports DDR3 1866( OC )/1600( OC )/1333/1066/800 non-ECC, un-buffered memory, up to 32GB in capacity.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 14
File format: PDF
File size: 575 KB
Published: 06 June, 2012
Updated: 30 September, 2023
Models: U3S3, 970DE3
MD5 checksum: BDBECCD765FD228B3D2D35589EE6D018
PDF: ASRock 970DE3/U3S3 Motherboard Installation Guide PDF

About this manual

This document is an installation guide for the ASRock 970DE3/U3S3 motherboard. It details the contents of the packaging, including the ATX form factor board and necessary accessories like SATA cables and I/O shields. The guide provides instructions on how to install the motherboard into a computer case. This manual is written in Chinese.

What's inside

Package Contents
Motherboard Specifications
Installation Steps
BIOS Features
Exclusive Functions
Operating System Support

Frequently asked questions

What are the physical dimensions of this motherboard?

The motherboard measures 12.0 inches x 7.5 inches, which is equivalent to 30.5 centimeters x 19.1 centimeters.

How much faster can charging be with the APP Charger software?

Using the APP Charger program allows you to charge mobile devices up to 40% faster than before.
