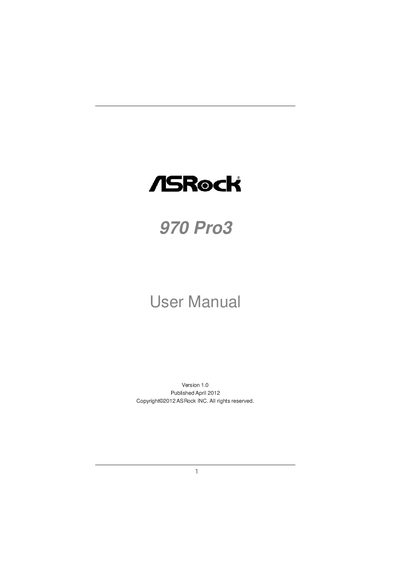

ASRock 970 Pro3 Motherboard User Manual

This is the summary of ASRock 970 Pro3 User Manual, which introduces the features and characteristics of 970 Pro3 motherboard

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 64
File format: PDF
File size: 1.1 MB
Published: 06 June, 2012
Updated: 30 September, 2023
Model: 970 Pro3
MD5 checksum: 570B357923383727724AF72E1C006B35
PDF: ASRock 970 Pro3 Motherboard User Manual PDF

About this manual

The ASRock 970 Pro3 is an ATX form factor motherboard designed for Socket AM3+ and AM3 processors. It features a dual-channel DDR3 memory system with support for up to 32GB of RAM, an AMD 970 Northbridge chipset, and AMD SB950 Southbridge chipset. The board includes multiple expansion slots including two PCI Express x16 slots supporting CrossFirex technology, as well as integrated audio and Gigabit LAN capabilities.

What's inside

Introduction
Package Contents
Specifications
Motherboard Layout
Pre-installation Precautions
CPU Installation
Memory Modules Installation
Expansion Slots
UEFI SETUP UTILITY
Software Support

Specifications

Form Factor	ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
CPU Socket Support	Socket AM3+ and Socket AM3 processors
Max CPU Power	140W
Memory Type	Dual Channel DDR3 Memory Technology
Max System Memory	32GB
Chipset Northbridge	AMD 970
Chipset Southbridge	AMD SB950
Audio Codec	Realtek ALC892 Audio Codec

Frequently asked questions

What operating systems are supported by this motherboard?

The motherboard is compliant with Microsoft Windows 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit.

Does the motherboard support RAID functions?

Yes, the SATA3 connectors support RAID configurations including RAID 0, RAID 1, RAID 5 and RAID 10.

What is the maximum CPU power supported?

The motherboard supports CPUs with a TDP up to 140W.
