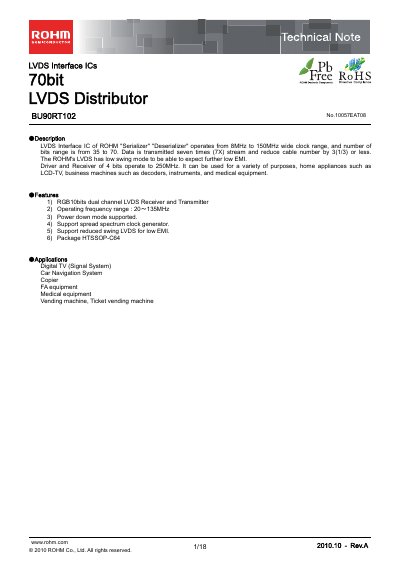

The BU90RT102 is a 70-bit LVDS Distributor from ROHM Co., Ltd. It supports 7x stream data transmission and can be used for a variety of home appliances, business machines, and medical equipment.
The BU90RT102 is a 70‑bit LVDS interface IC that combines serializer and deserializer functions. It operates from 8 MHz to 150 MHz clock range, supports 35‑70 bits, and offers low‑swing LVDS for reduced EMI. The device includes dual‑channel driver and receiver blocks and is packaged in an HTSSOP‑C64 package.
The note lists absolute maximum ratings, recommended operating conditions, pin‑out diagrams, DC and AC characteristics, and ordering information. It also outlines typical applications such as digital TV, car navigation, copiers, medical equipment, and vending machines.
| Operating frequency range | 20 MHz – 135 MHz |
|---|---|
| Package type | HTSSOP‑C64 |
| Supply voltage (typical) | 3.3 V |
| Power‑down mode | Supported |
| Number of LVDS channels | 4 bits |
The device operates from 20 MHz to 135 MHz.
It is supplied in an HTSSOP‑C64 package.
Yes, a power‑down mode is supported.
Typical applications include digital TV, car navigation systems, copiers, FA equipment, medical equipment, vending machines, and ticket vending machines.
