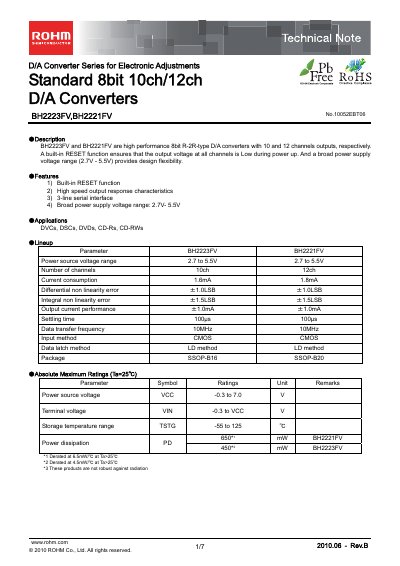

BH2223FV and BH2221FV are high performance 8bit R-2R-type D/A converters with 10 and 12 channels outputs, respectively. A built-in RESET function ensures that the output voltage at all channels is Low during power up. And a broad power supply voltage range (2.7V - 5.5V) provides design flexibility.
The BH2223FV and BH2221FV are high‑performance 8‑bit R‑2R type D/A converters offering 10 and 12 output channels respectively. They include a built‑in RESET function that forces all outputs low on power‑up and support a wide 2.7 V‑5.5 V supply range for flexible design.
The document provides full electrical characteristics, pin descriptions, equivalent circuit diagrams, recommended operating conditions, and ordering details. It also lists key specifications such as channel count, current consumption, linearity errors, and settling time, along with application notes and safety warnings.
| Power source voltage range | 2.7 V to 5.5 V |
|---|---|
| Number of channels (BH2223FV) | 10 channels |
| Current consumption (BH2223FV) | 1.6 mA |
| Differential non‑linearity error | +1.0 LSB |
| Integral non‑linearity error | +1.5 LSB |
| Settling time | 100 µs |
The converters operate from 2.7 V to 5.5 V.
It ensures that the output voltage at all channels is low during power‑up.
The device is specified for -20 °C to 85 °C.
