This document describes the features and characteristics of a product called BU7961GUW, including the maximum transmission rate and support for LCD interface.

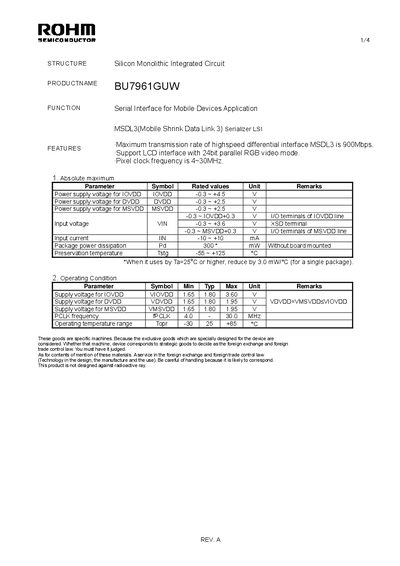

The BU7961GUW is a serial interface serializer (MSDL3) designed for mobile devices, supporting up to 900 Mbps high‑speed differential transmission and a 24‑bit parallel RGB video mode. The document lists absolute maximum ratings, operating conditions, and detailed electrical characteristics such as supply voltage ranges and clock frequencies.
Key sections include feature tables, electrical characteristic tables, pin‑out diagrams, package view, current consumption data, and extensive usage precautions covering power‑supply handling, grounding, and protection against static discharge.
| Maximum transmission rate | 900 Mbps |
|---|---|
| LCD interface support | 24‑bit parallel RGB video mode |
| Pixel clock frequency | 4~30 MHz |
| Operating temperature range | -30 °C to +85 °C |
| PCLK frequency range | 40 MHz – 30 MHz |
It can transmit up to 900 Mbps over the high‑speed differential interface.
Unused input terminals should be connected to the power‑supply or GND line to avoid instability.
A reverse connection can damage the IC; an external diode or other protective measure should be used.
