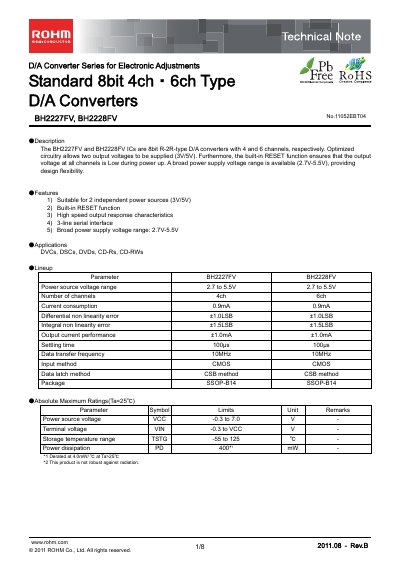

The BH2227FV and BH2228FV are 8-bit R-2R type D/A converters with 4 and 6 channels, respectively. Optimized circuitry allows two output voltages to be supplied (3V/5V). Furthermore, the built-in RESET function ensures that the output voltage at all channels is Low during power up. A broad power supply voltage range is available (2.7V-5.5V), providing design flexibility.
The BH2227FV (4‑channel) and BH2228FV (6‑channel) are 8‑bit R‑2R type D/A converters with dual supply options (3 V/5 V) and a built‑in reset function. They operate over a wide supply range of 2.7 V to 5.5 V and are suited for audio‑visual, office‑automation, communication and consumer electronic devices.
The document lists electrical characteristics, timing charts, pin descriptions, thermal derating, and ordering information. Key parameters such as current consumption, linearity errors, settling time, and package type are detailed for designers.
| Supply voltage range | 2.7 V – 5.5 V |
|---|---|
| Number of channels | 4 (BH2227FV) / 6 (BH2228FV) |
| Current consumption | 0.9 mA |
| Differential non‑linearity error | +1.0 LSB |
| Integral non‑linearity error | +1.5 LSB |
| Settling time | 100 µs |
| Data transfer frequency | 100 MHz |
| Package | SSOP‑B14 |
The BH2227FV operates with a supply voltage from 2.7 V to 5.5 V.
The BH2228FV provides six independent output channels.
Yes, the ICs have a built‑in RESET function that holds all outputs low on power‑up.
They are suitable for two independent power sources, typically 3 V and 5 V.
