This product is a 4-bit LVDS receiver with a working frequency range of 8MHz to 150MHz, supports 7X stream transmission, and can be used for various home appliances, commercial equipment, instruments, and medical equipment.

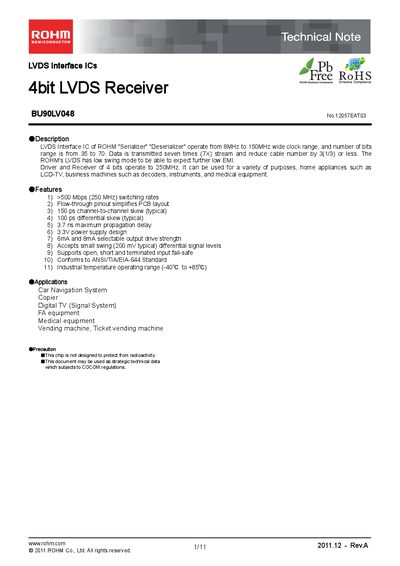

The BUSOLV048 is a low‑voltage differential signaling (LVDS) receiver IC designed for high‑speed data transmission. It operates from 8 MHz to 150 MHz clock rates and provides selectable output drive strengths of 6 mA or 8 mA.
Typical applications include LCD‑TVs, business decoders, medical equipment, vending machines and other electronic devices. The device meets ANSI/TIA/EIA‑644 standards, features a flow‑through pinout for easy PCB layout, and operates over an industrial temperature range of –40 °C to +85 °C.
| Maximum data rate | >500 Mbps (250 MHz) |
|---|---|
| Supply voltage (recommended) | 3.0 V – 3.6 V (typ 3.3 V) |
| Operating temperature range | -40 °C to +85 °C |
| Package type | SSOP‑B16 |
| Output drive strength | 6 mA or 8 mA selectable |
| Maximum propagation delay | 3.7 ns |
| Channel‑to‑channel skew (typical) | 150 ps |
The device supports data rates greater than 500 Mbps (250 MHz).
It is recommended to operate at 3.3 V, with an allowable range of 3.0 V to 3.6 V.
It is rated for industrial temperatures from –40 °C to +85 °C.
The IC is supplied in an SSOP‑B16 surface‑mount package.
