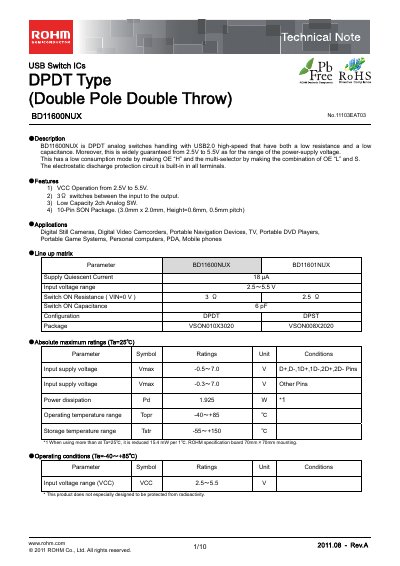

BD11600NUX is a DPDT USB switch IC that handles USB2.0 high-speed devices with low resistance and low capacitance. It operates from 2.5V to 5.5V and has a low consumption mode. The product also features electrostatic discharge protection circuitry. It is suitable for applications such as digital still cameras, digital video camcorders, portable navigation devices, TVs, portable DVD players, portable game systems, personal computers, PDAs, and mobile phones.
The BD11600NUX is a DPDT analog switch designed for USB 2.0 high‑speed applications. It operates from 2.5 V to 5.5 V, offers low on‑resistance and low capacitance, and is supplied in a 10‑pin SON package (3.0 mm × 2.0 mm, 0.5 mm pitch).
The document lists detailed electrical parameters such as on‑resistance, on‑capacitance, quiescent current, and absolute maximum ratings, as well as pin descriptions, truth tables, and example application circuits. Design recommendations for power‑supply routing, grounding, and thermal considerations are also included.
| Operating voltage range (VCC) | 2.5 V – 5.5 V |
|---|---|
| Switch ON resistance (VIN=0 V) | 3.2 Ω |
| Switch ON capacitance | 6 pF |
| Supply quiescent current | 18 yA |
| Package type | 10‑Pin SON (VSONO010X3020) |
The device operates from 2.5 V to 5.5 V.
It provides three switches between the input and the output.
The typical ON resistance is 3.2 Ω.
It is supplied in a 10‑Pin SON (VSONO010X3020) package.
