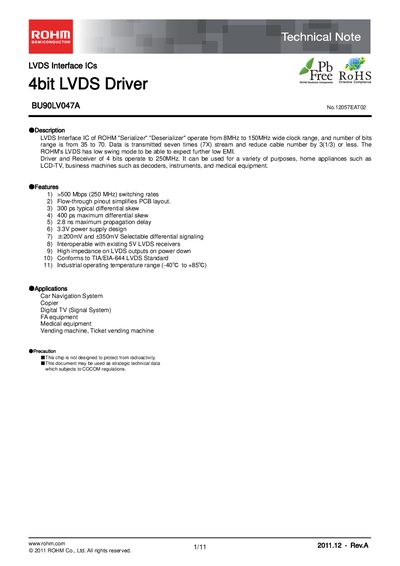

The BU90LV047A is a 4-bit LVDS driver produced by ROHM. It operates in a wide clock range of 8MHz to 150MHz and supports 35 to 70 bits of data. The BU90LV047A uses a low swing mode to further reduce EMI.
The ROHM BUSOLV047A is an LVDS interface IC that can operate from 8 MHz to 150 MHz clock rates and supports data rates up to 500 Mbps (250 MHz). It offers low‑swing signaling, selectable differential swing levels, and complies with the TIA/EIA‑644 LVDS standard. The device is supplied in an SSOP‑B16 package and is suitable for a range of applications such as LCD‑TV, car navigation, copiers, medical equipment and vending machines.
The note provides a block diagram, pin configuration and description, absolute maximum ratings, recommended operating conditions, DC and switching characteristics, as well as ordering information. It also includes precautions regarding radiation tolerance and export regulations.
| Maximum switching rate | >500 Mbps (250 MHz) |
|---|---|
| Supply voltage (VCC) | 3.0 V – 3.6 V |
| Operating temperature range | -40 °C to +85 °C |
| Differential output voltage (Vont) | 250 mV – 450 mV |
| Package type | SSOP‑B16 |
The device supports data rates greater than 500 Mbps (250 MHz).
Supply voltage VCC should be between 3.0 V and 3.6 V, with 3.3 V typical.
It operates from –40 °C to +85 °C.
The IC is offered in an SSOP‑B16 package.
