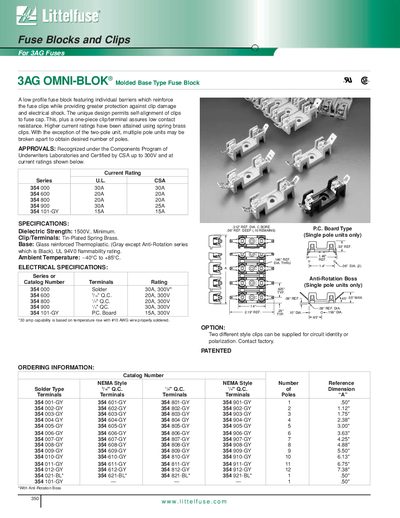

This document describes the features of the 3AG OMNI-BLOK® molded base type fuse block, including low profile design, individual barriers, self-alignment function, one-piece clip/terminal, low contact resistance, etc. The product is UL recognized and CSA certified.
The 3AG OMNI-B LOK® molded base fuse block is a low‑profile component featuring individual barriers that reinforce the fuse clips and protect against damage and shock. Its unique self‑aligning design and one‑piece clip/terminal ensure low contact resistance, while spring‑brass clips enable higher current ratings.
The leaflet lists UL and CSA approvals, dielectric strength, material construction, ambient temperature range, and current ratings for each series. Ordering information and optional anti‑rotation styles are also provided.
| Dielectric Strength | 1500 V minimum |
|---|---|
| Clip/Terminals Material | Tin‑Plated Spring Brass |
| Base Material | Glass reinforced Thermoplastic (Gray, Black for anti‑rotation) |
| Flammability Rating | UL 94V0 |
| Ambient Temperature Range | -40 °C to +85 °C |
| UL/CSA Approval | Recognized under UL Components Program and certified by CSA up to 300 V |
It is recognized under the UL Components Program and certified by CSA for up to 300 V.
The fuse block can operate from –40 °C to +85 °C.
The clip/terminals are made of tin‑plated spring brass.
The dielectric strength is at least 1500 V.
