This 3AG OMNI-BLOK® Molded Base Type Fuse Block is a low profile fuse block featuring individual barriers that reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the two-pole unit, multiple pole units may be broken apart to obtain desired number of poles.
File format: PDF
Size: -
MD5 Checksum: F41E9C993B453724A50FEE08665CE379
Publication date: 05 June, 2012
Downloads: -

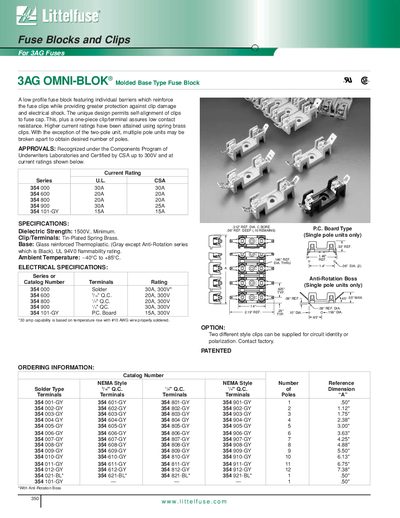

PDF Link: littelfuse Fuse Blocks Clips For 3AG Fuses 3AG OMNI-BLOK Molded Base Type Fuse Block(1) PDF
