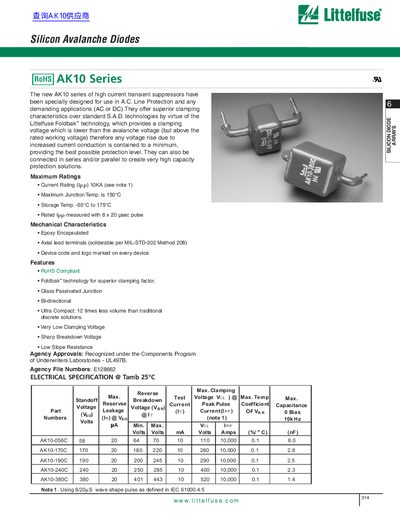

The AK10 series of high current transient suppressors are specially designed for use in A.C. Line Protection and any demanding applications (AC or DC). They offer superior clamping factor with Foldbak™ technology. Glass passivated junction, Bi-directional, Ultra Compact: 12 times less volume than traditional discrete solutions. Very Low Clamping Voltage, Sharp Breakdown Voltage, Low Slope Resistance.
The Littelfuse AK10 series consists of silicon avalanche diodes designed as high-current transient suppressors for AC line protection and demanding applications. These devices utilize the proprietary Foldbak™ technology to provide superior clamping characteristics, ensuring a lower clamping voltage than standard technologies while maintaining safety above the rated working voltage.
| Current Rating (Ipp) | 10KA |
|---|---|
| Maximum Junction Temp. | 150°C |
| Storage Temp. | -55°C to 175°C |
The devices use Littelfuse Foldbak™ technology to provide a clamping voltage lower than the avalanche voltage.
Yes, the datasheet lists 'RoHS Compliant' as a feature.
