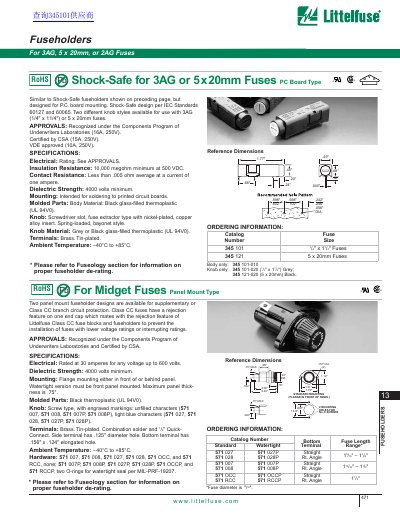

littelfuse Fuseholders For 3AG 5 x 20mm or 2AG Fuses
This document provides specifications and ordering information for Littelfuse Shock-Safe fuseholders designed for 3AG or 5x20mm fuses. The product is intended for PC board mounting and is designed per IEC Standards 60127 and 60065. It features a spring-loaded, bayonet style knob with a screwdriver slot and a fuse extractor type with a nickel-plated copper alloy insert.
Read onlineLittelfuse 3AG specifications
| Fuse Diameter | 13/32" |
|---|---|
| Insulation Resistance | 10,000 megohm minimum at 500 VDC |
| Contact Resistance | Less than .005 ohm average at a current of one ampere |
| Dielectric Strength | 4000 volts minimum |
| Mounting | Intended for soldering to printed circuit boards |
| Body Material | Black glass-filled thermoplastic (UL 94V0) |
| Ambient Temperature | –40°C to +85°C |
Source: littelfuse Fuseholders For 3AG 5 x 20mm or 2AG Fuses
All Littelfuse 3AG documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What standards is the Shock-Safe fuseholder designed per?
It is designed per IEC Standards 60127 and 60065.
What are the available fuse sizes for the Shock-Safe fuseholder?
The fuseholder is designed for 3AG (1/4" x 11/4") or 5 x 20mm fuses.
What is the dielectric strength of the fuse block?
The minimum dielectric strength is 1500V.
From: littelfuse Fuse Blocks Clips For 3AG Fuses 3AG OMNI-BLOK Molded Base Type Fuse Block(1)
Are multiple pole units breakable?
Yes, with the exception of the two-pole unit, multiple pole units may be broken apart to obtain the desired number of poles.
From: littelfuse Fuse Blocks Clips For 3AG Fuses 3AG OMNI-BLOK Molded Base Type Fuse Block(1)
What are the agency approvals for these fuses?
The fuses are listed by Underwriters Laboratories and certified by CSA through 30 amperes.
From: Littelfuse 3AG Fast-Acting Type 312/318 Series Axial Lead and Cartridge Fuses Datasheet
What is the interrupting rating for 250VAC?
The interrupting rating is 385A at 250VAC.
From: Littelfuse 3AG Fast-Acting Type 312/318 Series Axial Lead and Cartridge Fuses Datasheet
