This is a 1500W surface mount transient voltage suppressor that features RoHS compliance, is suitable for surface mount applications to optimize board space, has a low profile package, built-in strain relief, glass passivated junction, low inductance, excellent clamping capability, repetition rate (duty cycle) of 0.05%, fast response time (typically less than 1.0ps from 0 Volts to BV min.), typical IR less than 1µA above 10V and high temperature soldering (250℃/10 seconds at terminals).

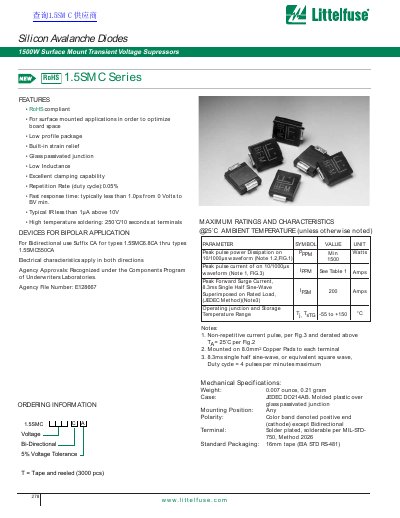

The document provides a comprehensive overview of the Littelfuse 1.5SMC Series Silicon Avalanche Diodes, designed for surface-mounted applications in bipolar devices. Key features include RoHS compliance, low profile packaging with built-in strain relief, and excellent clamping capability suitable for bidirectional use.
| Package Type | JEDEC DO214AB |
|---|---|
| Weight | 0.007 ounce, 0.21 gram |
Yes, the series is RoHS compliant.
The fast response time is typically less than 1.0ps from 0 Volts to BV min.
