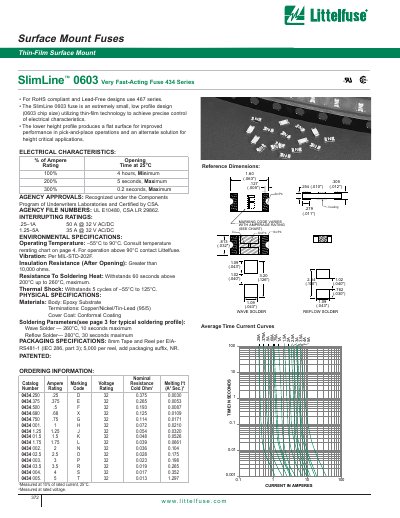

This document is an introduction to Littelfuse SlimLine 0603 Very Fast-Acting Fuse 434 Series. The product is designed in 0603 chip size, with extremely small size and low profile. It uses thin-film technology to achieve precise control of electrical characteristics.
The Littelfuse SlimLine 0603 Very Fast-Acting Fuse (434 Series) is an extremely small, low-profile design utilizing thin-film technology to achieve precise control of electrical characteristics. It features a lower height profile that produces a flat surface for improved performance in pick-and-place operations and serves as an alternate solution for height-critical applications.
| Chip Size | 0603 chip size |
|---|---|
| Operating Temperature Range | -55°C to 90°C |
| Interrupting Rating (0.25–1A) | 50 A @ 32 V AC/DC |
| Interrupting Rating (1.25–5A) | 35 A @ 32 V AC/DC |
| Insulation Resistance (After Opening) | > 10,000 ohms |
