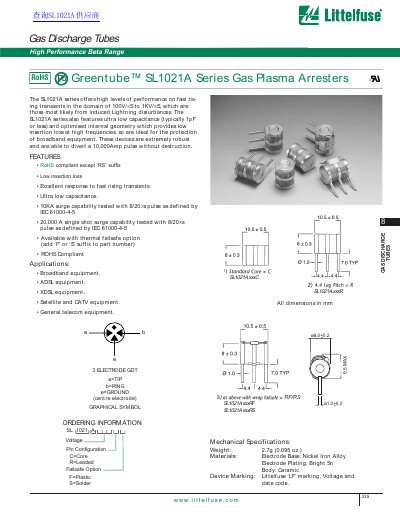

Greentube™ SL1021A Series Gas Plasma Arresters is a lightning arrester produced by Littlefuse company. It has ultra low capacitance, excellent response to fast rising transients and 10KA surge capability.
The Littelfuse Greentube™ SL1021A series offers high levels of performance on fast rising transients in the domain of 100V/µS to 1KV/µS, which are those most likely from induced Lightning disturbances. These devices feature ultra low capacitance (typically 1pF or less) and optimized internal geometry providing low insertion loss at high frequencies.
| Ultra low capacitance | typically 1pF or less |
|---|---|
| Surge capability (8/20 µs) | 10KA |
| Single shot surge capability | 20,000 A |
| Weight | 2.7g (0.095 oz.) |
| Body Material | Ceramic |
They are ideal for broadband equipment, ADSL, XDSL, satellite and CATV, and general telecom equipment.
Yes, it is RoHS compliant except for models with the 'RS' suffix.
