The product is WICKMANN FLR 42V series PCB fuse holders with maximum rated current of 58V, weight about 3g, contact temperature 130°C, packaging unit 500 pieces

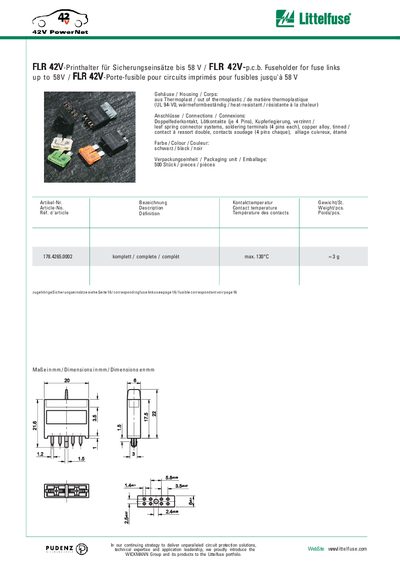

This document is a datasheet for the Littelfuse FLR 42V fuseholder (Porte-fusible), designed for use in circuits up to 58 V. The product features a black thermoplastic housing that is UL 94-V0 rated and heat-resistant.
The device utilizes double leaf spring connector systems with soldering terminals, consisting of four pins each made from tinned copper alloy. It is packaged in units of 500 pieces.
| Voltage Rating | up to 58 V |
|---|---|
| Housing Material | Thermoplast |
| Flammability Rating | UL 94-V0, heat-resistant |
| Connector Type | leaf spring connector systems, soldering terminals |
| Pins per Connector | 4 pins each |
| Connector Material | copper alloy, tinned |
| Colour | black |
| Packaging Unit | 500 pieces |
| Contact Temperature | max. 130°C |
The device is rated for use with fuse links up to 58 V.
The housing is constructed from thermoplastic that meets UL 94-V0 standards and is heat-resistant.
The connector system provides soldering terminals with 4 pins each.
