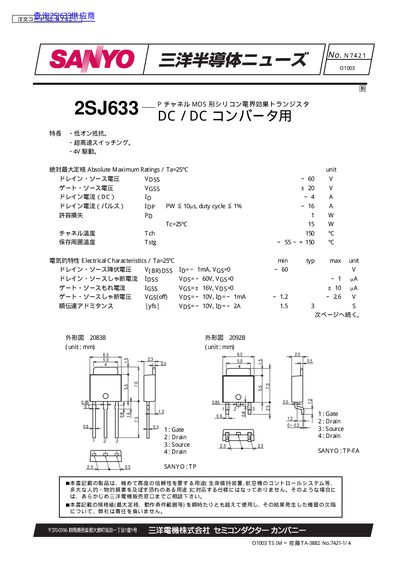

This document describes the features and characteristics of the 2SJ633 product, including low impedance, ultra-high speed switching, and 4V drive. It also provides detailed information on absolute maximum ratings and electrical characteristics.
This datasheet describes the Sanyo 2SJ633 N‑channel power MOSFET intended for DC‑DC converter applications. It lists absolute maximum ratings, electrical characteristics, and switching performance.
Key sections include absolute maximum ratings, on‑resistance values, capacitances, gate charge, and typical switching waveforms. Safety and reliability notes are also provided for high‑reliability uses. This manual is written in Japanese.
| Drain‑Source Voltage (V_DSS) | 60 V |
|---|---|
| Drain Current (ID) Continuous | 4 A |
| On‑Resistance Rds(on) @ VGS = -10 V, ID = -2 A | 280 mΩ |
| Total Gate Charge (Qg) | 9 nC |
The maximum drain‑source voltage is 60 V.
The device can handle a continuous drain current of 4 A.
