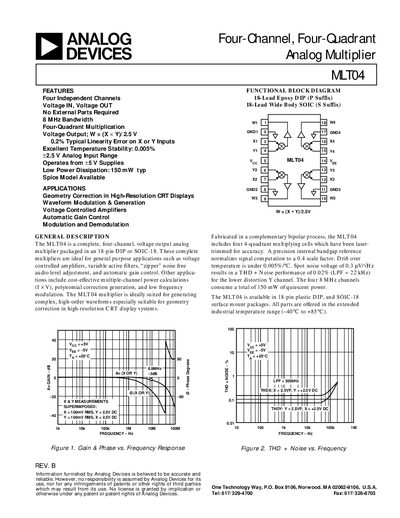

The MLT04 is a complete, four-channel, voltage output analog multiplier packaged in an 18-pin DIP or SOIC-18. It is ideal for general purpose applications such as voltage controlled amplifiers, variable active filters, “zipper” noise free audio level adjustment, and automatic gain control. Other applications include cost-effective multiple-channel power calculations (I × V), polynomial correction generation, and low frequency modulation. The MLT04 multiplier is ideally suited for generating complex, high-order waveforms especially suitable for geometry correction in high-resolution CRT display systems.
The MLT04 analog multiplier provides four independent channels with voltage inputs and voltage outputs, packaged in 18‑lead DIP or SOIC‑18. It is designed for applications such as voltage‑controlled amplifiers, automatic gain control, and geometry correction in CRT displays.
The device operates from ±5 V supplies, consumes about 150 mW, and is rated for an operating temperature range of –40 °C to +85 °C. Detailed specifications include total error, linearity error, scale factor, and power dissipation.
| Total Error (X channel) | -5 ± 2 % FS |
|---|---|
| Linearity Error (X channel) | -1 ± 0.2 % FS |
| Scale Factor K | 0.38 – 0.42 1/V |
| Power Dissipation | 150 – 200 mW |
| Supply Voltage Range | ±4.75 – ±5.25 V |
The MLT04 has an 8 MHz small‑signal bandwidth.
The device uses VCC = +5 V and VEE = –5 V.
The MLT04 operates from –40 °C to +85 °C.
