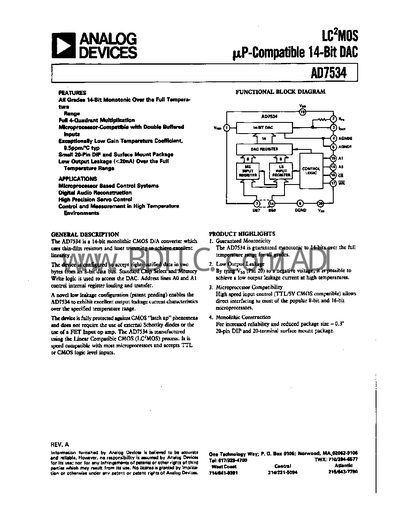

The AD7534 is a 14‑bit monolithic CMOS DAC featuring low output leakage, high accuracy, and microprocessor‑compatible interfaces. The document includes functional block diagrams, product highlights, and detailed specifications such as resolution, temperature coefficients, and package options.
Additional sections cover timing characteristics, pin configurations, grounding techniques, mechanical dimensions, and example interface circuits for various microprocessors (MC6809, 6502, Z80, MC68000). The handbook serves as a comprehensive reference for designers implementing the AD7534 in high‑precision control and measurement applications.
| Resolution | 14‑bit |
|---|---|
| Output Leakage Current | <20 nA |
| Package Options | 20‑Pin DIP and Surface‑Mount |
It is available in a 20‑pin DIP and a 20‑pin surface‑mount package.
The device’s output leakage current is less than 20 nA over the full temperature range.
