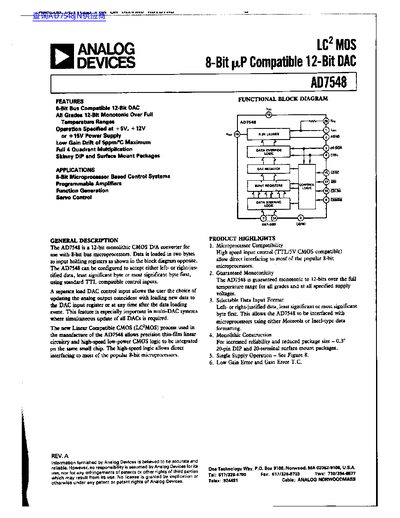

The AD7548 is a 12‑bit monolithic CMOS digital‑to‑analog converter designed for use with 8‑bit bus microprocessors. It supports both left‑ and right‑justified data formats and offers a separate load DAC control for flexible output updating.
The device includes multiple operating modes, timing specifications, and detailed pin configurations, making it suitable for a range of applications such as microprocessor‑based control systems, programmable amplifiers, and servo control.
The AD7548 can be operated from +5 V, +12 V, or +15 V power supplies.
A separate load DAC control input (LDAC) lets you update the analog output either simultaneously with data loading or later, using either automatic or strobed transfer modes.
