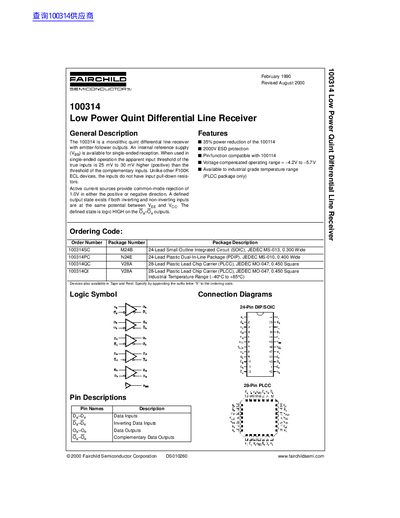

The 100314 is a monolithic quint differential line receiver with emitter-follower outputs. An internal reference supply (VBB) is available for single-ended reception. When used in single-ended operation the apparent input threshold of the true inputs is 25 mV to 30 mV higher (positive) than the threshold of the complementary inputs. Unlike other F100K ECL devices, the inputs do not have input pull-down resistors. Active current sources provide common-mode rejection of 1.0V in either the positive or negative direction. A defined output state exists if both inverting and non-inverting inputs are at the same potential between VEE and VCC. The defined state is logic HIGH on the Oa-Oe outputs.
The 100314 is a monolithic quint differential line receiver that provides a 35% power reduction compared with the 100114, featuring emitter‑follower outputs and internal reference supply. It operates with a supply voltage range of –5.7 V to –4.2 V and supports both single‑ended and differential inputs.
Key specifications include a 150 mV input voltage differential, toggle frequencies up to 250 MHz (full swing) and 700 MHz (reduced swing), propagation delays around 0.65 ns, and operation over an industrial temperature range of –40 °C to +85 °C. The device is offered in SOIC, PDIP, and PLCC packages.
| Supply Voltage (Vee) range | -5.7 V to -4.2 V |
|---|---|
| Input Voltage Differential | 150 mV |
| Industrial temperature range | -40 °C to +85 °C |
The recommended supply voltage (Vee) is –5.7 V to –4.2 V.
The industrial version operates from –40 °C to +85 °C.
