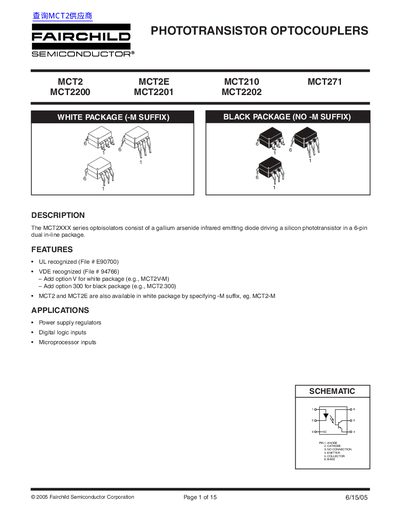

This datasheet lists the features and specifications of the MCT2XXX series optoisolators. This series of optoisolators consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.
The MCT2XXX series optoisolators consist of a gallium‑arsenide infrared emitting diode driving a silicon phototransistor in a 6‑pin dual‑in‑line package. They are intended for power‑supply regulators, digital logic inputs, and microprocessor inputs.
The sheet provides absolute maximum ratings, typical electrical and transfer characteristics, isolation performance, mechanical dimensions, and ordering codes for both black and white‑package variants.
| Package Lead Spacing | 0.4 in (10 mm) |
|---|
