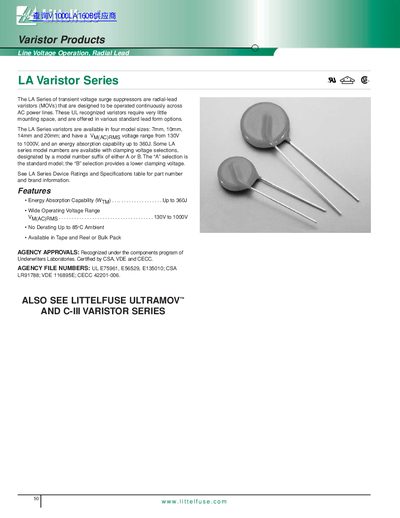

The LA Series varistors are radial‑lead MOVs intended for continuous line‑voltage operation on AC power lines. They are UL‑recognized, available in 7 mm, 10 mm, 14 mm and 20 mm sizes, and cover a voltage range from 130 V to 1 000 V.
The document provides detailed device ratings, tape‑and‑reel specifications, lead‑style options and ordering instructions, along with agency approvals (UL, CSA, VDE, CECC) and performance curves for clamping voltage and surge current.
| Energy Absorption Capability | Up to 360 J |
|---|---|
| Maximum Ambient Temperature | 85 °C |
| Model Sizes | 7 mm, 10 mm, 14 mm, 20 mm |
| Agency Approvals | UL, CSA, VDE, CECC |
The LA Series varistors can absorb up to 360 J of energy.
The series is offered in 7 mm, 10 mm, 14 mm and 20 mm sizes.
They are rated for operation up to 85 °C ambient temperature.
