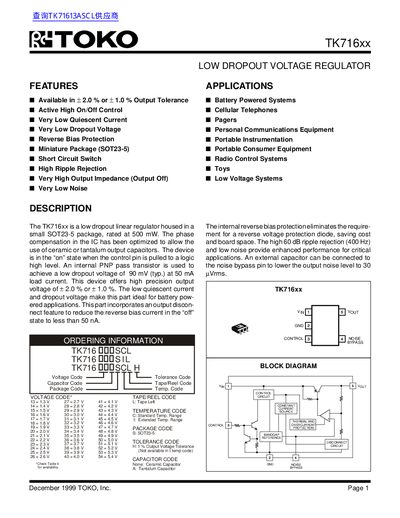

The TK716xx is a low dropout linear regulator from TOKO that features very low quiescent current, very low dropout voltage, reverse bias protection, miniature package (SOT23-5), short circuit switch, high ripple rejection, very high output impedance (output off) and very low noise.
The TK716xx family is a low‑dropout linear regulator housed in a miniature SOT‑23‑5 package. It provides up to 500 mW of power with a typical dropout voltage of 90 mV at 50 mA load, selectable output voltages from 1.3 V to 5.4 V, and output‑tolerance options of ±1 % or ±2 %.
Designed for battery‑powered applications, the device features very low quiescent current, reverse‑bias protection, high ripple rejection (60 dB at 400 Hz) and low output noise. It is offered in several voltage codes and is suitable for portable instruments, cellular phones, toys, and other low‑voltage systems.
| Output Voltage Tolerance | ±2.0 % or ±1.0 % |
|---|---|
| Maximum Power Dissipation | 500 mW |
| Ripple Rejection | 60 dB at 400 Hz |
| Package | SOT‑23‑5 |
| Continuous Output Current | 150 mA |
The regulator can deliver a continuous output current of 150 mA.
It is offered in a miniature SOT‑23‑5 surface‑mount package.
