The TK6592x is a miniature electroluminescent (EL) lamp driver optimized for battery-controlled systems where power consumption and size are primary concerns.

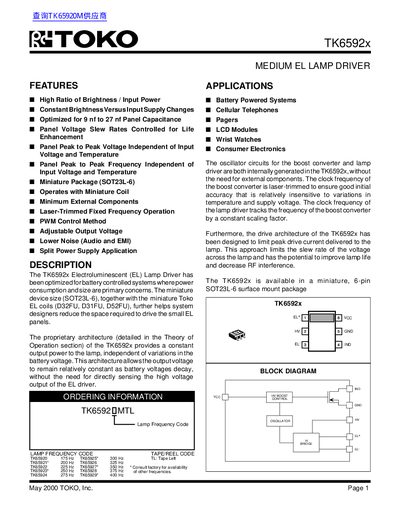

The document describes the TK6592x family of Electroluminescent (EL) Lamp Drivers designed for battery-controlled systems where power consumption and size are critical. The device is optimized for use with Toko EL coils to drive small EL panels in applications such as wristwatches, pagers, and cellular telephones.
| Package Type | SOT23L-6 |
|---|---|
| Input Supply Range | 2.7 to 6 V |
| Quiescent Current (Typ) | 200 uA |
| Peak Current Threshold (Typ) | 52 mA |
| Peak to Peak Lamp Voltage (Typ) | 140 V |
| Operating Temperature Range | -30 to +80 °C |
The typical quiescent current into pin 6 is 200 uA.
The device operates in a miniature SOT23L-6 surface mount package.
It is used in battery powered systems like cellular telephones, pagers, LCD modules, and wrist watches.
