This document is a list of TOKO D10F series inductors, including rated inductance, frequency, DC resistance, DC current, etc.

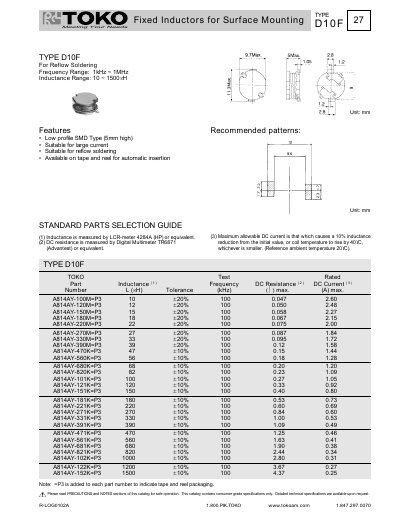

This document is a product catalog for the TOKO Type D10F series of fixed inductors designed for surface mounting. The components are specifically engineered with a low profile (5mm height) to be suitable for large current applications and reflow soldering processes.
The catalog provides a standard parts selection guide listing various part numbers, inductance values ranging from 10µH to 1500µH, along with their corresponding tolerances, DC resistance, maximum DC current ratings, and frequency range of 1kHz to 1MHz. Recommended mounting patterns are also included.
| Product Type | Fixed Inductor for Surface Mounting |
|---|---|
| Frequency Range | 1kHz ~ 1MHz |
| Inductance Range | 10 ~ 1500µH |
| Profile Height | 5mm high |
| Packaging Options | Tape and reel for automatic insertion |
The specified frequency range is from 1kHz to 1MHz.
Yes, the Type D10F series is specifically designed and suitable for reflow soldering processes.
The suffix '=P3' is added to each part number to indicate that it comes on tape and reel.
