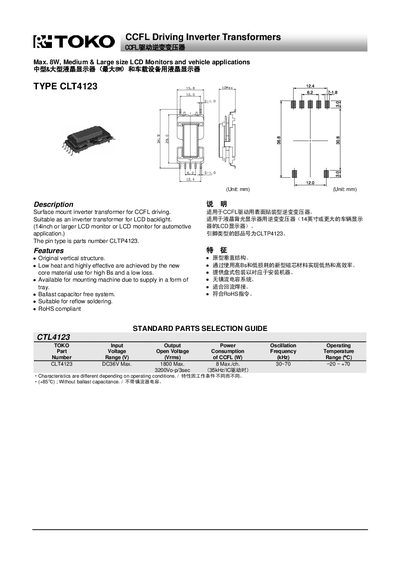

This document mainly introduces the features of CLT4123 inverter transformer, including: original vertical structure, low heat and high efficiency, ballast capacitor free system, suitable for reflow soldering, RoHS compliant, etc.
The CLT4123 is a surface‑mount inverter transformer designed to drive CCFL backlights in medium and large LCD monitors and automotive LCD applications. It operates from a 36 V DC input and provides up to 1800 Vrms output for CCFL tubes.
Key features include an original vertical structure, low heat generation, a ballast‑capacitor‑free design, RoHS compliance, and suitability for reflow soldering. The part is supplied in a tray form for easy mounting on automated equipment.
| Form Factor | Surface‑mount, tray supplied |
|---|---|
| RoHS Compliance | Yes |
Yes, the CLT4123 meets RoHS requirements.
Yes, it is suitable for reflow soldering.
