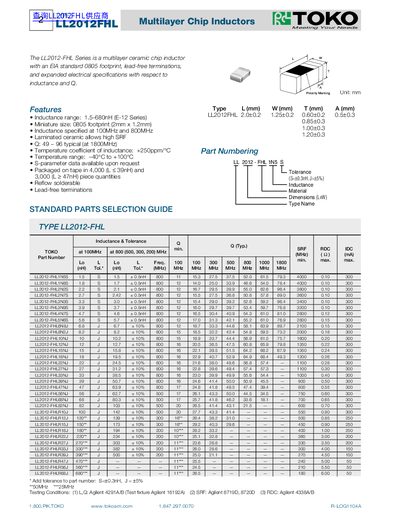

This document is a standard parts selection guide for the LL2012FHL multilayer ceramic chip inductor. The inductor has a range of 1.5-680nH, a 0805 footprint, and is rated at 100MHz and 800MHz.
The document describes the LL2012-FHL Series, a multilayer ceramic chip inductor with an EIA standard 0805 footprint and lead-free terminations. Key features include laminated ceramic construction allowing for high Self-Resonant Frequency (SRF) and temperature coefficients of +250ppm/°C.
| Footprint | 0805 (2.0mm x 1.2mm) |
|---|---|
| Inductance Range | 1.5-680nH (E-12 Series) |
| Temperature Range | -40°C to +100°C |
| Q Factor (Typical) | 49 ~ 96 at 1800MHz |
The LL2012-FHL Series covers an inductance range of 1.5-680nH.
The component has a miniature size of 0805 footprint with dimensions of 2mm x 1.2mm.
The typical Q value ranges from 49 to 96 when measured at 1800MHz.
